Specification:

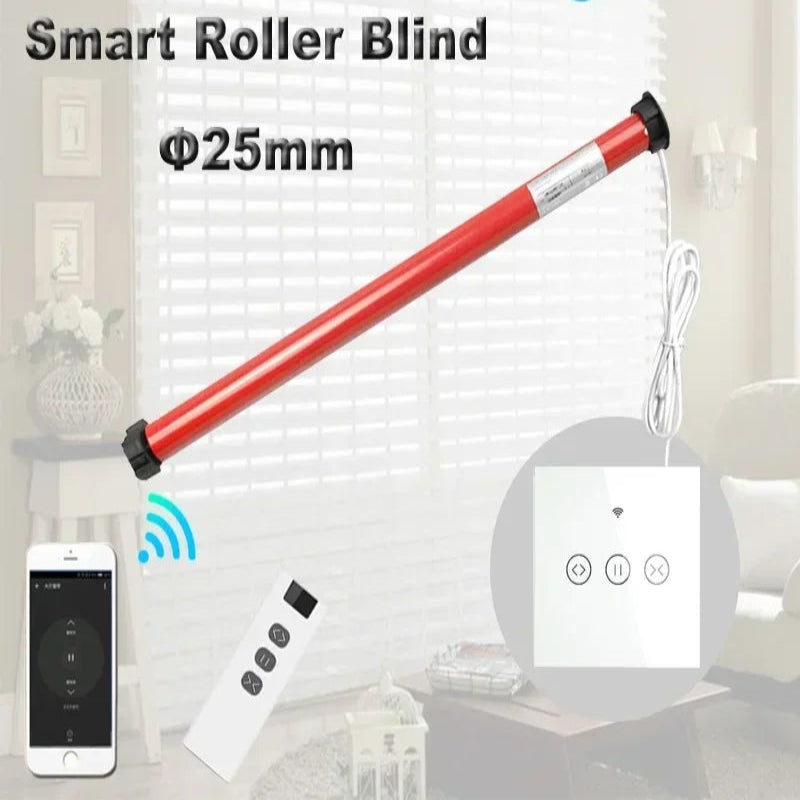

Item Name: Tubular Curtain Blinds Motor with wifi Smart Switch
Item No.: 25S-2/28
Motor Diameter: 25mm
Driving Tube Diameter: 38mm
Voltage: AC100V - 240V (60/50Hz)
Rated Current: 0.3A
Rated Torque: 2N.m
Rated Speed: 28 rpm
Smart Control App: Smart Life/ Tuya
Voice Control: with Amazon Alexa Echo/ Google Home
Load: Max 3m / 10KGS
Packing:
Tubular Motor*1+Smart Curtain Switch (If choosed) + Basic Kit*1set + Wall Bracket *2 + Idler*1 + English Manuel*1
Attention:
1. The Smart Curtain Switch is necessary to work with the tubular motor together to realize the automation and intelligent control to your house curtains. If you need to control the roller blind shutter motor smartly, buy the Smart Curtain Switch Together.
2. The Roller Blinds Motor is suitable for 38mm driving tub

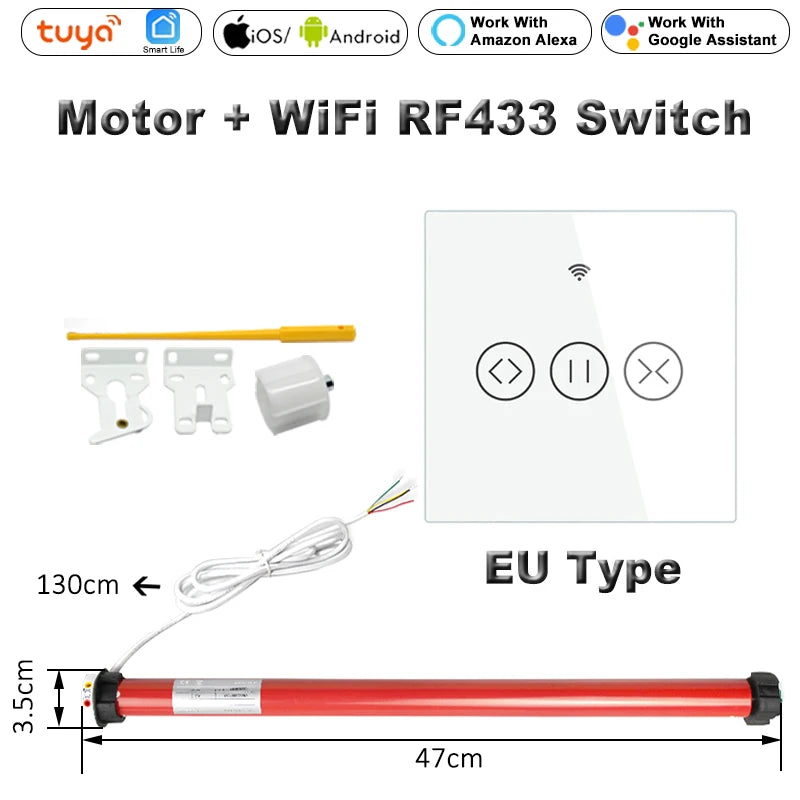

3. The different between EU Switch 1 & EU Switch 2:

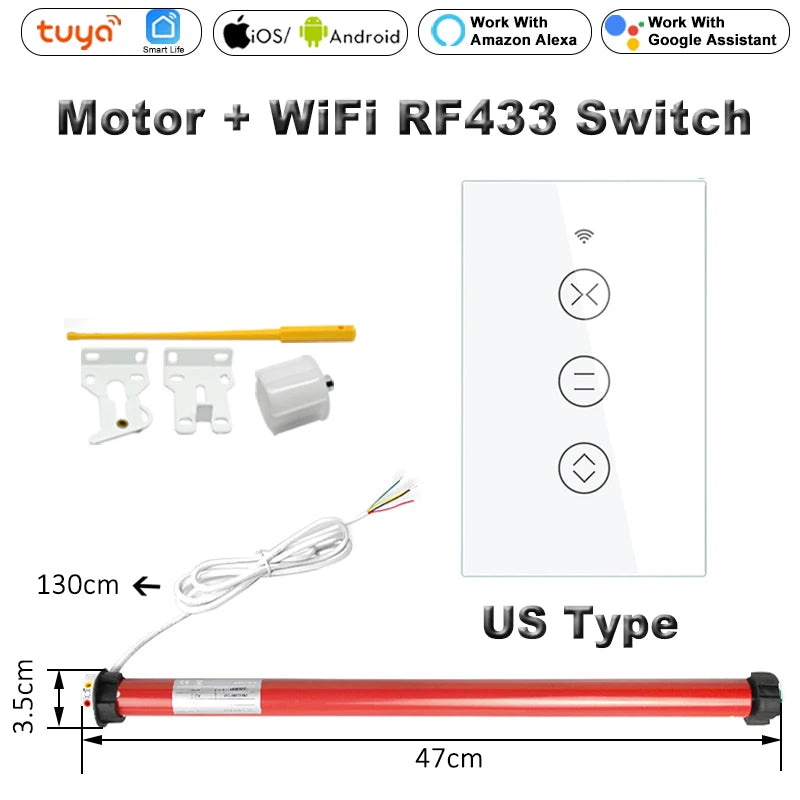

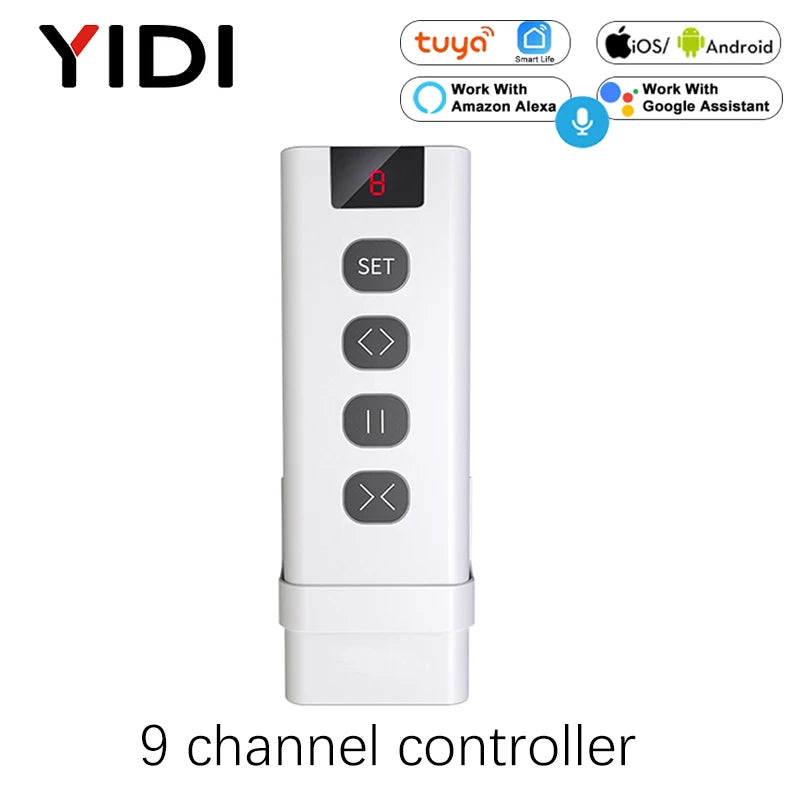

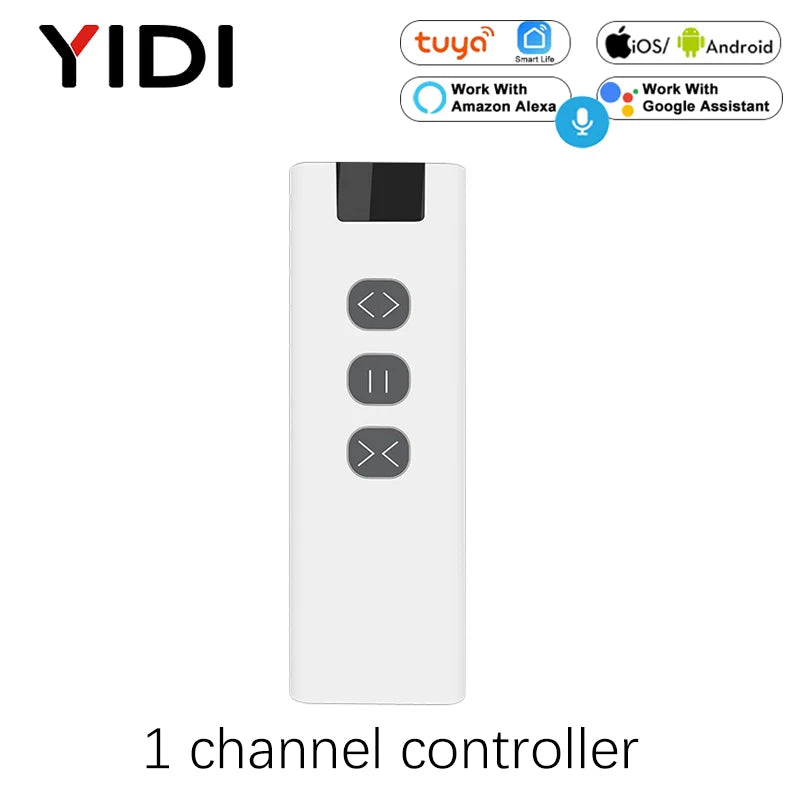

-- Switch 2 have WIFI and RF433 function. Can be controlled both by Smart phone APP and RF433 Controller ( Controller is not included. If need the controller, contact with us)
-- Switch 1 only have WIFI Function, and can only be controlled by Smart phone APP.4.
Installation Method

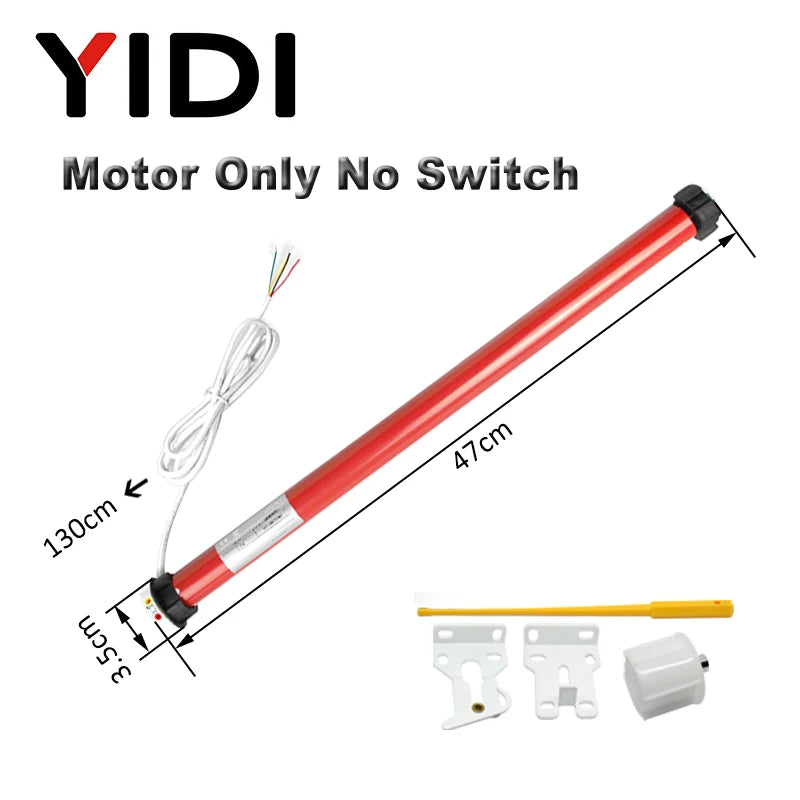

1. Tubular Motor
2. Drive Adapter (included)
3. Wall Bracket (included)
4. Driving Tube ( Can buy in our shop via Link)
6.Idler (included)
7. Fabric (not included)
8. Bottom Beam (not included)
Smart Control
Working together with smart curtain switch ensures various built-in functions of switch to control your tubular motor
Timing Function
Can be scheduled in the app to automatically control the custain motor according to your day
Wide Application
Tubular Motor works with various motorized roller blinds, roller shutter, venetian blinds, motorized clothes pole and so on
The motor is really a unique design owns plenty of functions for smart house, bring much convenience to smart lifes
Wireless Remote Control
Download "Smart Life" or "Tuya" in your smart phone to control curtain system with Wi-Fi or 4G network wherever
No hub required (Compatible with Android & iOS)
Hands-Free Voice Control
Connect the Smart Curtain Switch with Amazon Alexa or Google Home for voice control to the motor
Bring your smart life with much more convenience
Device Sharing
Share key to your family, many APPS control one Automatic Curtain System
Or one App control many smart curtain switch

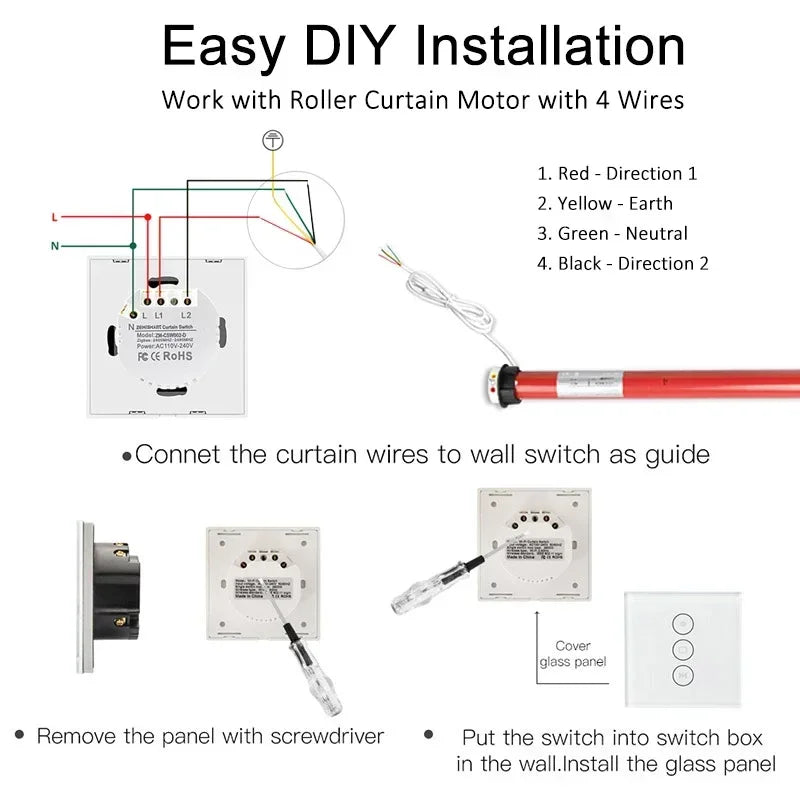

Easy DIY Installation
No installers or a degree in rocket-science required
Work with Roller Curtain Motor with 4 wires
Step 1: Connect the curtain wires to wall switch as guide
Step 2: Remove the panel with screwdriver
Step 3: Put the switch into switch box in the wall. Install the glass panel
Red wire - Direction 1
Yellow wire - Earth
Green wire - Neutral
Black wire - Direction 2
